China Carbon Steel Compost Trommel Vibrating Screen
Brief description
China Carbon Steel Compost Trommel Vibrating Screen provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing. Material rolling in the trommel can efficiently keep the mesh from blockage.
Application
China Carbon Steel Compost Trommel Vibrating Screen is widely used in many industries, such as mining, building materials, metallurgy, casting, abrasive material, chemical, light industry, medicine and food industries.
Working principle
The raw materials through the entrance of the Inlet will be pushed into the China Carbon Steel Compost Trommel Vibrating Screen. Raw materials in the rotary drum cylinder will be selected by the rotation of rotary drum sieve ,with the rotating of the cylinder the materials that less than the screen mesh will flow down by gravity ,the oversize materials will flow through the cylinder and discharge from outlet at the machine end.
Technical parameters
| Model | Segments of screen mesh | Mesh size (mm) | Power (KW) | Inclination | Rotating speed (rpm) | Capacity (m3/h) | Overall dimension |
| YTS600 | 1-3 | 5-35 | 2.2-3 | 7° | 20 | 10 | 5400*1150*1200 |
| YTS800 | 1-3 | 5-40 | 2.2-5.5 | 7° | 18 | 14 | 5600*1300*1500 |
| YTS1000 | 1-4 | 5-45 | 3-7.5 | 7° | 16 | 16 | 7400*1400*2240 |
| YTS1200 | 1-4 | 5-50 | 4-11 | 7° | 15 | 20 | 9480*1580*3400 |
| YTS1500 | 1-4 | 5-55 | 4-15 | 7° | 12 | 23 | 9700*1860*3700 |
| YTS2000 | 1-5 | 5-60 | 11-18.5 | 7° | 8 | 45 | 1100*2400*4500
|
Advantages
1. Mesh is not easy to block, automatic cleaning brush on the top of trommel screen to avoid the blockage.
2. Smooth operation, low noise.
3. High screening efficiency, Large screening capacity.
4. Simple structure, easy maintenance.
5. Sieve drum can be closed, easy to close the dust collection.
6. Convenient maintenance, the upper hood is removable.
Product Tags:
|
|

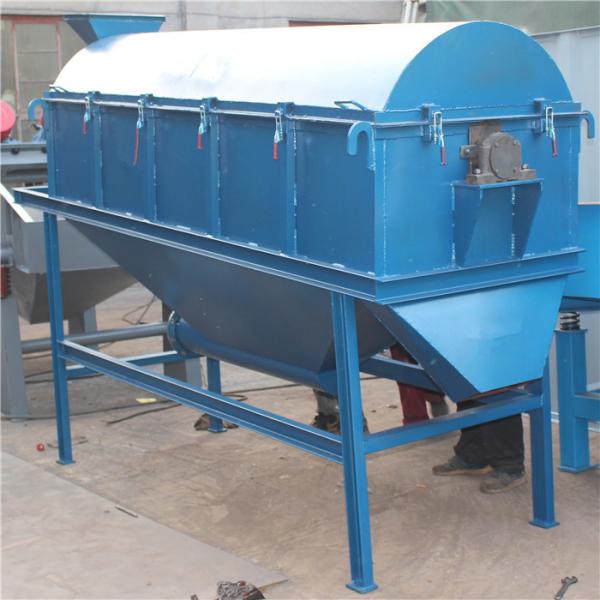

Carbon Steel Compost 8m Trommel Vibrating Screen Images
|
