Square Carbon Steel 0.11m3/rpm Rotary Airlock Valve

Brand Name : TECHANG

Model Number : TCYJD

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 10~15 working days

Packaging Details : Wooden case

Name : Square Type Carbon Steel Easy Clean Rotary Airlock Valve

Motor power : 0.55-5 kw

Voltage : 380/400/415/460 V

Impeller speed : 10/19~25.5/35 rpm

Rated feeding : 2/4~132~160 m3/h

Output per rotation : 0.005~0.11 m3 /rpm

Port Size : Variety

Connection : Square Type

Pressure : Medium Pressure

Contact Now

Square Type Carbon Steel Easy Clean Rotary Airlock Valve

Introduction


Square Type Carbon Steel Easy Clean Rotary Airlock Valve transfers the powder or small granular materials to the lower discharge hole for discharge from the upper feeding bin or hopper utilizing rotating impeller with grid chamber, thus realizing even feeding or variable feeding.

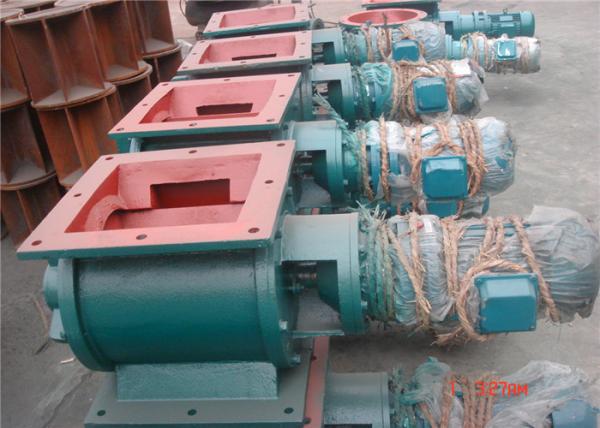

Square Carbon Steel 0.11m3/rpm Rotary Airlock Valve

Application

Square Type Carbon Steel Easy Clean Rotary Airlock Valve is mainly applied for dust removal, dust cleaning, packing machine and professional transportation batching system industries, such as power plant, cement plant, chemical plant, etc.

Specification
This is the technical parameters of different types of Square Type Carbon Steel Easy Clean Rotary Airlock Valve.
Model A B C E F M H h φ
YJD02 240 200 150 650 420 122.5 225 12 8xφ9
YJD04 260 230 180 758 526 140 280 15 8xφ11
YJD06 300 250 200 778 536 150 300 15 8xφ11
YJD08 300 270 220 798 546 160 320 18 8xφ11
YJD10 320 290 240 880 628 170 340 18 8xφ13
YJD12 340 310 260 900 638 180 360 18 8xφ13
YJD14 360 330 280 920 648 190 380 20 8xφ17
YJD16 400 350 300 960 678 200 400 20 8xφ17
YJD18 400 370 320 980 688 220 440 22 8xφ17
YJD20 420 390 340 1000 698 230 460 22 8xφ17
YJD26 500 450 400 1150 740 260 520 24 8xφ17
YJD30 520 490 440 1190 755 280 560 24 12xφ17

Square Carbon Steel 0.11m3/rpm Rotary Airlock Valve
Feature
1. The speed of impeller can be adjusted and changed according to needs, thus, the feeding capacity can be adjusted.
2. Round inlet and square inlet or based on the customer's needs.
3. Convenient operation and maintenance.
4. Good sealing performance, no blocking and no adherence.
5. Wide range of application.
